  • ES-TI-TH-35-FL All New Perfect Compact Multifunctional Hunting HD Thermal Imaging Sight with 4-in-1 Thermal Rifle Scope Monocular Searcher Ffp Lens Scope
  • ES-TI-TH-35-FL All New Perfect Compact Multifunctional Hunting HD Thermal Imaging Sight with 4-in-1 Thermal Rifle Scope Monocular Searcher Ffp Lens Scope
  • ES-TI-TH-35-FL All New Perfect Compact Multifunctional Hunting HD Thermal Imaging Sight with 4-in-1 Thermal Rifle Scope Monocular Searcher Ffp Lens Scope
  • ES-TI-TH-35-FL All New Perfect Compact Multifunctional Hunting HD Thermal Imaging Sight with 4-in-1 Thermal Rifle Scope Monocular Searcher Ffp Lens Scope

ES-TI-TH-35-FL All New Perfect Compact Multifunctional Hunting HD Thermal Imaging Sight with 4-in-1 Thermal Rifle Scope Monocular Searcher Ffp Lens Scope

  • Product Item:ES-TI-TH-35-FL
  • Category:Thermal Imager
  • Views:1290
  • Product Manual:
BASIC INFO

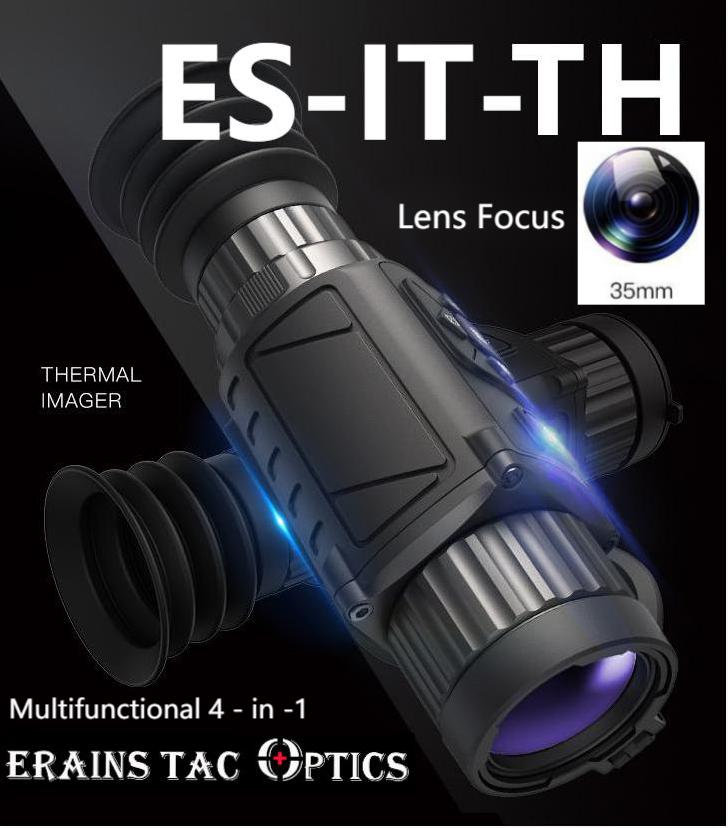

2021 All New Perfect Tactical Hunting Multifunctional 4 - in - 1 Thermal Imager Combines Night Vision Thermal Imaging Monocular Searcher Weapon Rifle Scope and FFP Lens Scope

This thermal imager is equipped with a 384 × 288 infrared detector and a 1024 × 768 OLED display.
It
can clearly see the target in harsh environments such as total darkness, smoke, dust, rain, snow, woods, and camouflage.
It supports two modes of using with both handheld observation and ordinary
weapon rifle scope, which can be used in night security patrols, search and rescue, sailing trips, outdoor camping activities and other use scenarios.


Main Features:
1. Military grade Multi-coated all-glass optics with Multiple Patterns & Colors Optional Reticle.
2. Smart and compact Digital riflescope with full Weather resistant and Waterproof of IP67, Shockproof and Dust / Fog proof IP66.
3. Full Metal Aluminium Housing with special Hard Anodized Treatment.
4. Quick detachable rail mounting system.
5. Designed for Real Fire Calibers with recoil resistant ability up to 1200G Impact Force.
6.
384×288 ma resolution with
17μm Pixel and 50 fps Frame Frequency.
7. Smart Functions with Wi-Fi Hot Spot, Hot Track, Range Finder, Standby Mode, Record Video, Capture Snapshot, Wi-Fi, Curso, all included.
8. Storage Built-in EMMC (16 GB), Scene Mode supports to Jungle, Recognition and Image details Enhancement Supported.
9. Working temp has extended to be within minus 20 celcius ~ + 55 Celcius, and storaging temp can be even within minus 40 celcius ~ +70 celcius range.
10. More than 4 hours constant runtime driven by 2x CR123A rechargeable batteries with USB direct charging cable.



Selling points:
• Rugged, Reliable All-Metal housing
• Easy to operate with the joystick
• High-resolution 1024x768 OLED display
• 25mm and 35mm  lens optional (this model is fixed with 35mm)
• Stadiametric range finder
• High shock resistance of 1200G
• 45mm eye relief for protecting user's eye
• Detecting range up to 1235 meters for 35mm focus lens for target objective of 1.8mx0.5m
NETD Less than 35 mK (@25°C),F#=1.0
One device can be used as 4 functional as thermal image monocular, thermal imaging searcher,  thermal imaging weapon scope,  thermal imaging FFP scope lens.

The International First Class Advanced Uncooled Image Sensor:

The smart 4
Palettes with hot spot on:


The 5 different reticle patterns for scope mode:

The batteries can run up more than 4 hours:
Battery Operating Time: 4.5 h (25 °C, with hotspot off); 4 h (25 °C, with hotspot on)
Battery Capacity Display: Yes
Anti-reverse Battery Connection: Yes
Reticle illumination power supply: (2x18650 built in rechargeable batteries)

The Perfect Hunting 384×288 Resolution Pixel Thermal Imaging Monocular Searcher Weapon Scope and FFP Scope Lens
4-in-1 Night Vision Detailed Technical Description:

Magnification: 2.08x
Digital Zoom: 1X, 2X, 4X, 8X


Dimension: 187.2 mm × 62.5 mm × 59.2 mm (7.37" × 2.46" × 2.33")
Weight: 0.415 kg (0.91 lb) without eyepiece and batteries


A. Product Description:
ES-TI-TH-35-FL is the latest with thermai imager night vision device at its class that comes with definitely affordable price and high performance with multi functions. With high resolution comes in 384x288, its resolution is EVEN BETTER than Some brands with pixels up to 17 um. The accuracy is unparalleled thanks to the 5 different patterns reticle system. It can be adjusted vertically and horizontally to help find back zero retice position for different distances or move the reticle exactly to the required areas. It can be mounted as thermal scope based on the package included quick detachable weapon rail mount.
The optional handheld screen will also support this device to be a handheld thermal searcher.
It's widely used for police shooting training, hunting in the wild and shooting with security personnel.

C. Specifications:

ES-TI-TH-35-FL Thermal Imager Full Technical Parameters:
Thermal Module Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 384×288
Pixel Interval 17μm
Response Waveband 8μm to 14μm
NETD Less than 35 mK (@25°C),F#=1.0
Lens (Focal Length) 35mm
IFOV 0.68 mrad
Field of View 14.9° × 11.2°
Aperture F1.0
Magnification 2.08X
Image Display Frame Frequency 50 Hz
Monitor 0.39-inch, OLED, 1024 × 768
Contrast Adjustment Yes
Brightness Adjustment Yes
Palettes Black hot, white hot, red hot, fusion
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
Digital Zoom 1X, 2X, 4X, 8X
Crosshair Yes
DPC Yes
DDE Yes
3D DNR Yes
Exit Pupil 6 mm
Eye Relief 45 mm
Observation Distance Max. 1235 m
Smart Function Wi-Fi Hot Spot Yes
Hot Track Yes
Distance Measurement Yes
Standby Mode Yes
System Storage Built-in EMMC (16 GB)
Record Video Yes
Capture Snapshot Yes
Wi-Fi Yes
Cursor Yes
Scene Mode Jungle, Recognition
Power Supply Battery Type Lithium battery
Battery Operating Time 4.5 h (25 °C, with hotspot off)
4 h (25 °C, with hotspot on)
Battery Capacity Display Yes
Anti-reverse Battery Connection Yes
Overvoltage Protection Yes
General Power Replaceable Applicable type: CR123A, RCR123A
Work Temperature/Humidity From -20 °C to 55 °C (-4 °F to 131 °F); Humidity: 90% or Less
Protection Level IP67
Vibration & Shock 750 g/1 ms
Dimension 187.2 mm × 62.5 mm × 59.2 mm (7.37" × 2.46" × 2.33")
Weight 0.415 kg (0.91 lb) without eyepiece and batteries
Selection Parameter
Case Type Scope
Resolution 384 × 288

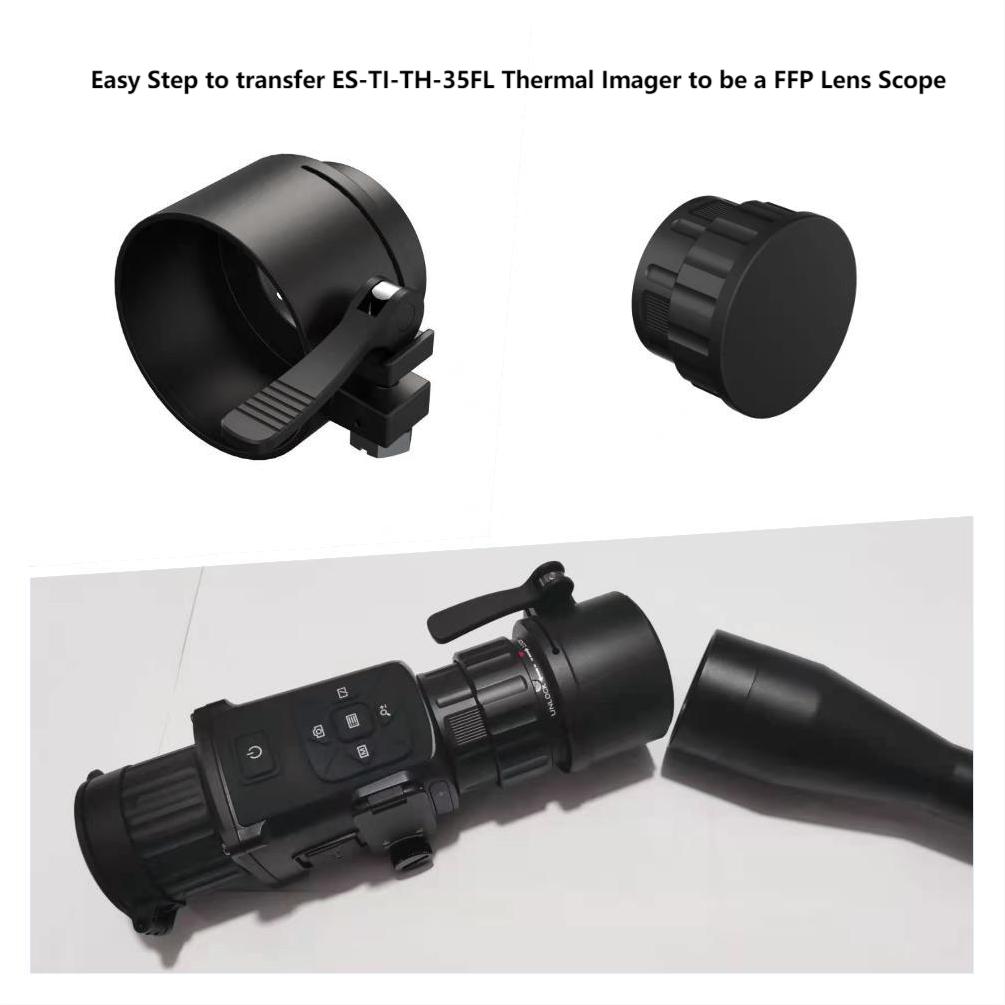

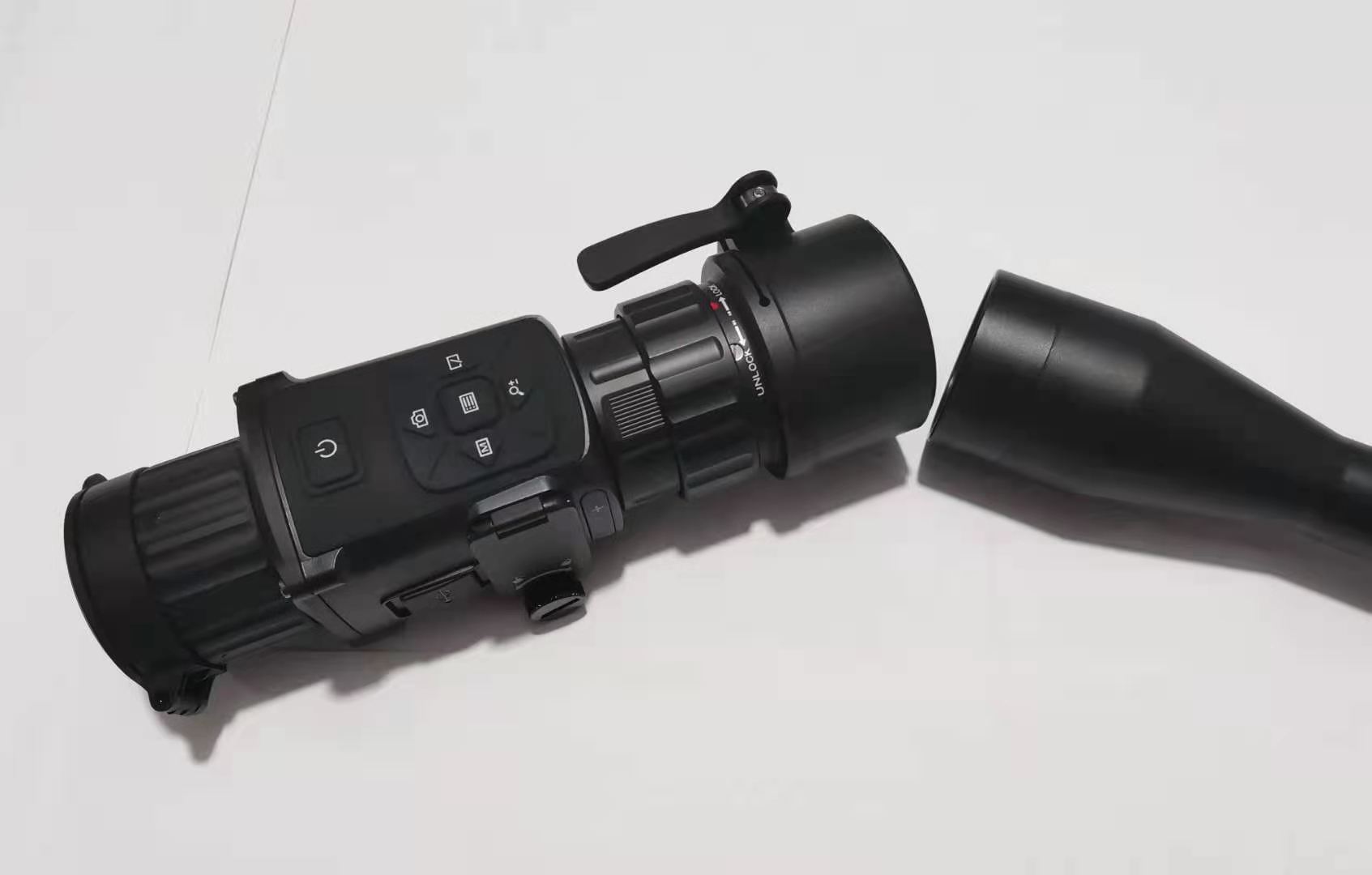

Thermal FFP Scope Support for 35mm Objective Lens


The Main Four Functions Applications:
1. Thermal Imaging Monocular:

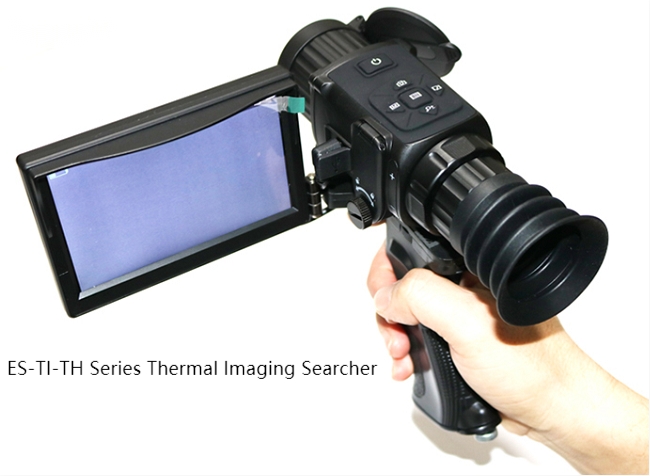

2. Thermal Imaging Searcher:
