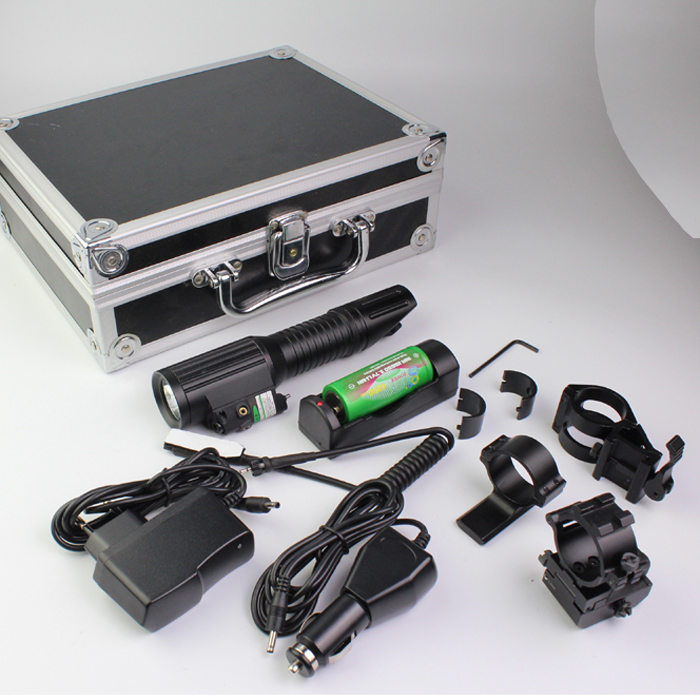

Name: Tactical professional hunting 1000 lumens T6 LED Laser Flashlight with quick start constant green laser sight includes with full rechargeable battery and charger set and optional ring mount and scope mount in metal package.
Product Origin: China
Supply Ability: 1000 pcs/month
Minimum Order: 100 pcs
Delivery Lead Time for MOQ: 20-30 days
Wavelength for green laser: 532nm
Power Output: 10W for LED light and 2-3mw for green laser
Laser Type (mw): CLASS IIIA<5
Battery: 1x26650 rechargeable 4200mAh battery 3.7V 1pc
Continuous Runtime: 2 hours (both green laser with led light working on), 66.5 hours (only green laser), 3 hours (only led light)
Products color: Black with Hard anodize
LED detailed information
LED model: CREE T6 LED
Diameter: Ø 38 mm
Length: 189 mm
LED brightness: Up to 1000 lumens blinding beam, Bright sidelight
Light color: Cold white
Working Temperature:-40 ~ +55
Light attenuation: Less than 3% after 10k hours
Life time: ≤ 50000 hours
Laser detailed information
Diameter: Ø 5.6 mm
Length: 5 mm
Wavelength: 532 nm
Working Temperature: -10 ~ +50 (14°F~122°F)
Laser Spot Diameter: 25-35mm @ 50m
Life time: ≤ 5000 hours
Working volt: 3.7V
Weight with Battery: 240g for the torch without battery and tail pad; 345g for torch with both battery and tail pad switch installed on.
Warranty: Extended Warranty of 13 months since shipment.
Construction: Aluminium alloy 6061-T6 with black hard anodized finish
Finish: Anodic oxidation/ V' r3 black
Operation: Ambidextrous Momentary/Steady on-off Switch; Pressure pad switch
Rail type: MIL-STD-1913 Picatinny Rail
The Product design and dimension with Using guide on the switches images below:
Unit Weight: 240g for the torch without battery and tail pad; 345g for torch with both battery and tail pad switch installed on.

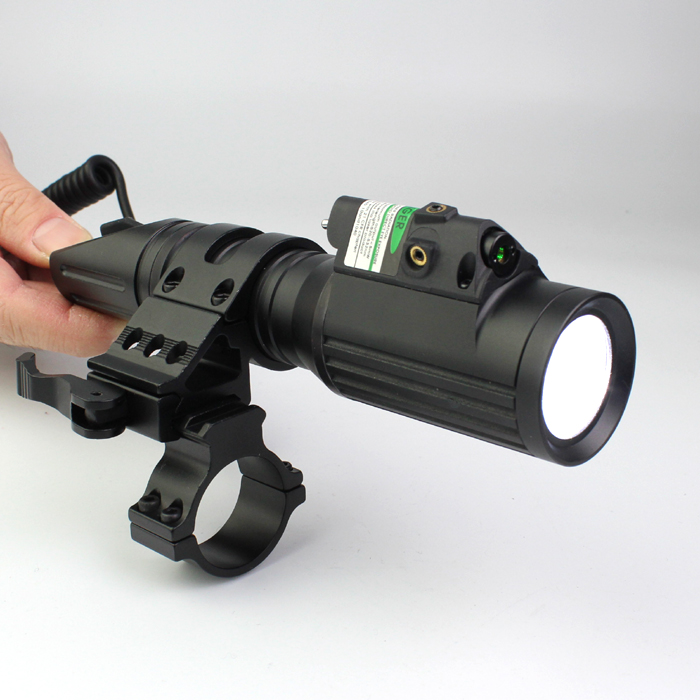

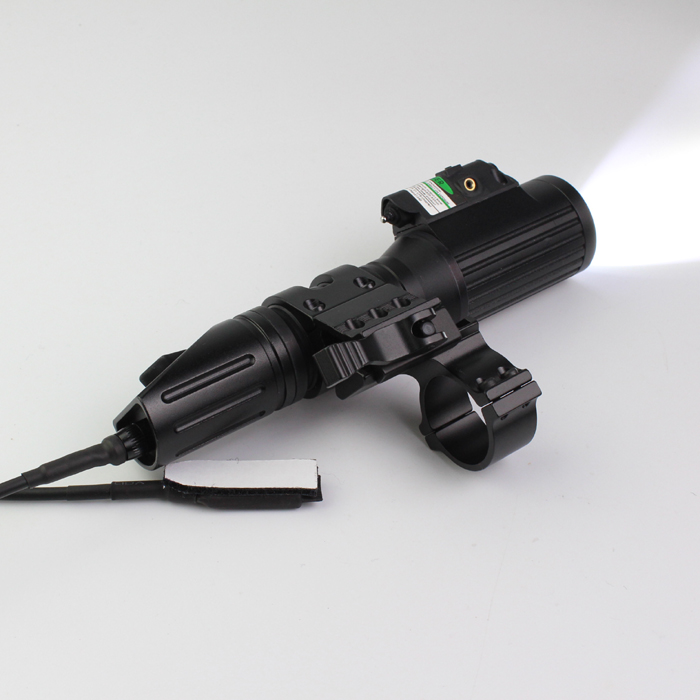

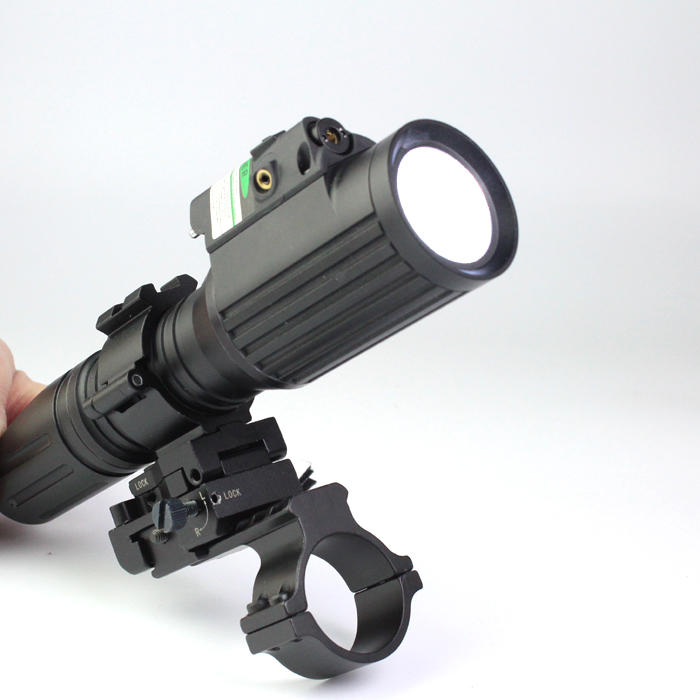

The 1000 lumens Torch/light combo mounting on the riflescope with the adjustable mount perfect view from different angles:
Quick target acquisition
High Brightness on LED
Flexible Mount System
Safe and adjustable
Dust and Shockproof
Ambidextrous Momentary/Steady on-off Switch
Machined anodized aluminum housing
Adjustable mount flexibility that can accommodate the Glock or Picatinny (1913) accessory rails.
Besides, we also offered 2 kinds of Mount A and Mount B quick release mount to replace the windage and elevation adjustable mount if the adjustable mount is not needed for mounting this torch, see below 2 opional QD mount to replace the adjustable mount:
LASER SIGHT and LED LIGHT ZEROING
For a laser mounted below or to the side of the bore, there is only one distance where the bullet path will coincide with the laser sight line, this point is the zero range.
Laser adjustment and the muzzle velocity of the bullet determine where this point occurs. The user must decide how high above or below the sight line the bullet can be allowed to strike and adjust the sight accordingly. At distances less than the zero range the bullet will be above the sight line. Beyond the zero range the bullet will be the sight line.
If mounted to the side, the bullet will also deviate to the side of the laser line, as well as up and down. In practice, a ES-LS-1KLM with laser combo on a machine gun can be adjusted to keep the bullet strike within about 2 high and 2 low out to about 100 feet.
The LED also can adjust the windage and elevation with the intalled windage and elevation adjustable mount.
