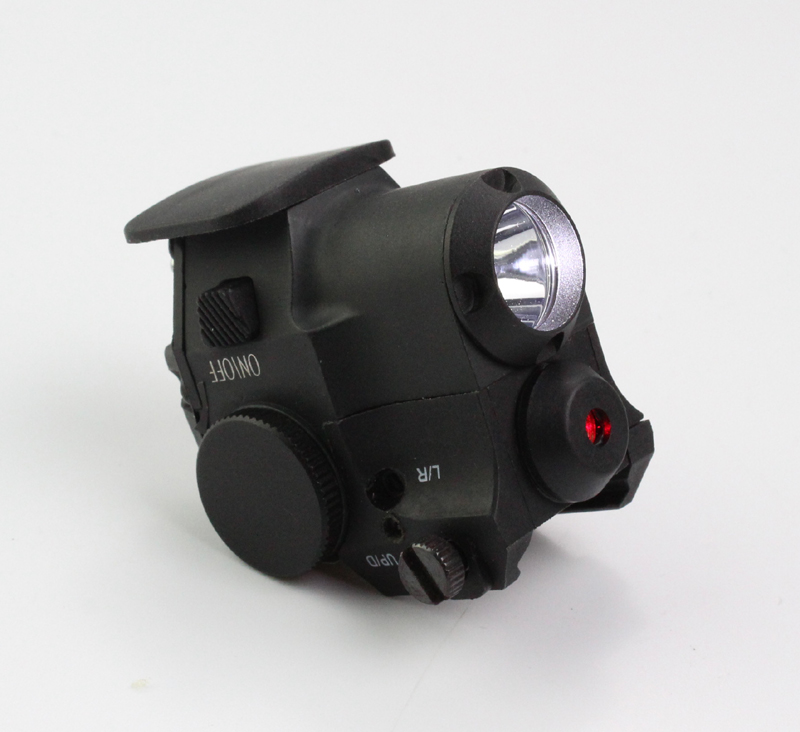

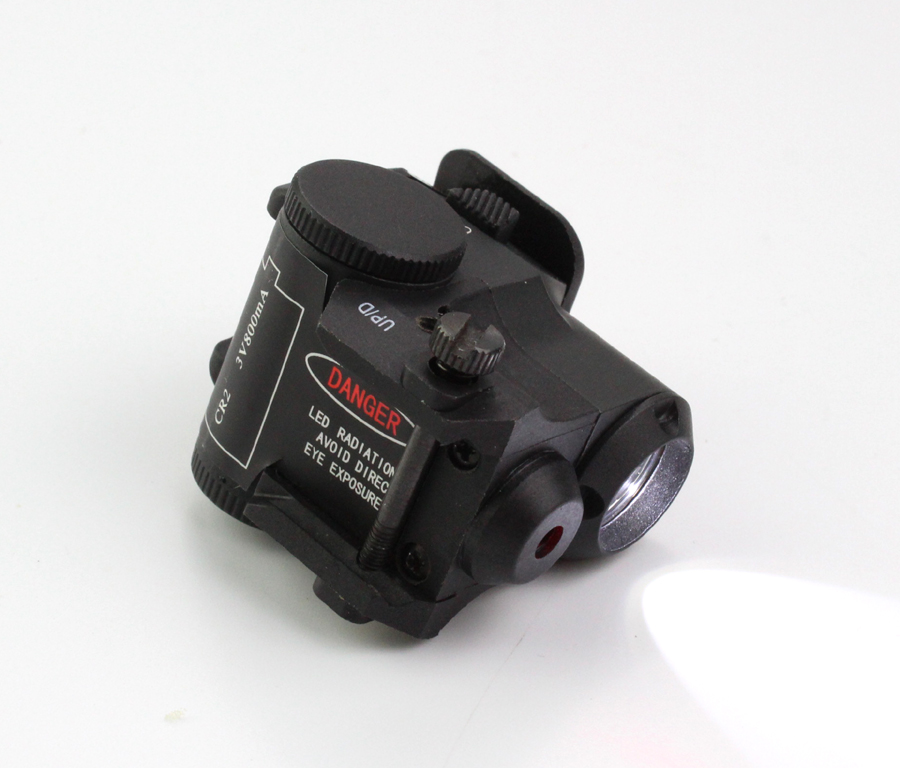

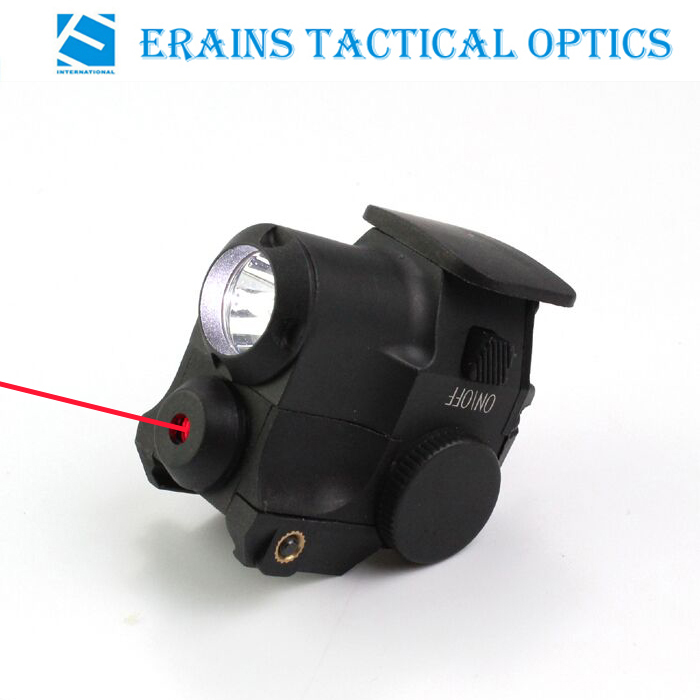

Name: Super compact tactical subzero working red laser sight with 180 lumens CREE Q5  led flashlight

Model: ES-LS-2HY01R

FDA accession number is available for this model.

Product Origin: China

Supply Ability: 1000 pcs/month

Minimum Order: 100 pcs

Delivery Lead Time for MOQ: 20 days

TECHNICAL DESCRIPTION

Wavelength: 532nm

Laser Type (mw): 5

Battery: 1xCR2 Lithium Non-Rechargeable Battery

Continuous single laser lighting time: 9 Hours
Continuous single LED lighting time: 120 Minutes
Continuous Couple(LED+Laser) lighting time:  90 Minutes

LED detailed information

LED model: CREE Q5 LED

Power: 3W

LED brightness: Up to 180 lumens blinding beam

Light color: Cold white

Working Temperature:-45C ~ +85C

Light attenuation: Less than 3% after 10k hours

Life time: ≤ 50000 hours

Laser detailed information

Wavelength: 532 nm
Working Temperature: -20C ~ +50C
Life time: ≤ 5000 hours
Working volt: 3V-8.2V
Laser Spot:  25-35mm@50m

Laser with with led light combo Info:

Weight w/o Battery: 63g
Housing Dimension:   (L)45*(W)45*(H)38mm
Warranty: Extended Warranty
Material: Aluminum 6061-T6
Operation:  Ambidextrous push on/off Switch on both sides of the sight and easy toggle switch swift from each 3 modes.

Rail Type: MIL-STD-1913 Picatinny Rail

Laser with with led light KIT INCLUDES

Compact red laser and LED Flashlight combo

Calibration tools

1x CR2 Lithium Non-Rechargeable Batteries

User manual

Package box

PACKING

Packing: 1 unit/gift box, 100 units/master carton

Unit package: Gift EVA box or kraft box

Master Carton: Top cardboard carton

Laser with with led light FEATURES

Quick target acquisition

Super-Lightweight

Super-Compact

Safe and adjustable

Dust and Shockproof

Quick push on/off Switch and easy toggle switch swift from each modes.

Plastic housing and aluminium head on the laser diod.

Fits existing pistol holsters while mounted on the pistol.

Adjustable mount flexibility that can accommodate the Glock or Picatinny (1913) accessory rails.

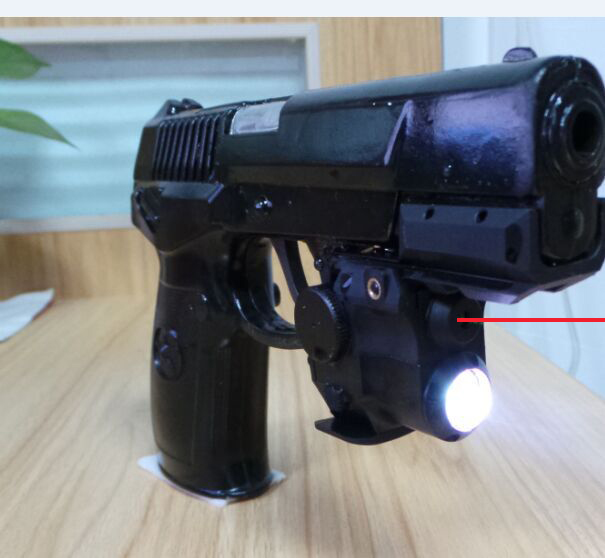

The tactical subzero compact led flashlight with red laser sight combo mounted on pistol for real effect ref:

LASER SIGHT ZEROING

For a laser mounted below or to the side of the bore, there is only one distance where the bullet path will coincide with the laser sight line, this point is the zero range.

Laser adjustment and the muzzle velocity of the bullet determine where this point occurs. The user must decide how high above or below the sight line the bullet can be allowed to strike and adjust the sight accordingly. At distances less than the zero range the bullet will be above the sight line. Beyond the zero range the bullet will be the sight line.

If mounted to the side, the bullet will also deviate to the side of the laser line, as well as up and down. In practice, a ES-MN-L2 series combo on a handgun can be adjusted to keep the bullet strike within about 2 high and 2 low out to about 100 feet.

BATTERY SUPPLY

The ES-LS-2HY01 Series laser sight+LED light combo uses 1x CR2 Lithium Non-Rechargeable Batteries. The CR2 battery negative and positive pole has been indicated on the housing.

DANGER: DO NOT use anything other than a CR2 lithium 3.0V battery or other unmatched rechargeable batteries with this product.

Our Service
Except man-made mistakes, we will exchange the defective with a brand new one within 14 days after you get our product. According to the guild regulations customer shall be responsible for the returning shipping fee.
Warranty: 1 Year free warranty with up to 2-3 years limited warranty for this model designator.

Warranty, we offer 13 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.

Shipping Method, We provide comprehensive shipping methods, for small quantity orders we ship by DHL Air-Express, or EMS/TNT Express service, it is safe and fast. For large quantity orders we can ship by Air transportation or sea transportation, also we can ship order to buyer's cargo agent in China. We quoted prices are EXW price, don't include shipping cost.

Company Policy: Strive for the Customer Satisfaction

We have rich experience upon the international order all over the world. We can deliver the order to your office or home directly. We will combine the shipping cost for multi items purchase.

FAQ

Finally, your feedback and suggestion are very important for us.

Thanks again for your attention. We sincerely hope you will enjoy our products.

All our products are built for real firearms. Our latest designators are manufactured with high quality components and materials. Excellent quality and stable performance. Water resistant, shock proof and recoil proof via (under) necessary condition testing.

Erains TAC Optics Subcompact minus 20 centigrade workable Tactical 180 lumens LED Flashlight with Red Laser attached combo for glacok or other full szie handguns
