BASIC INFO

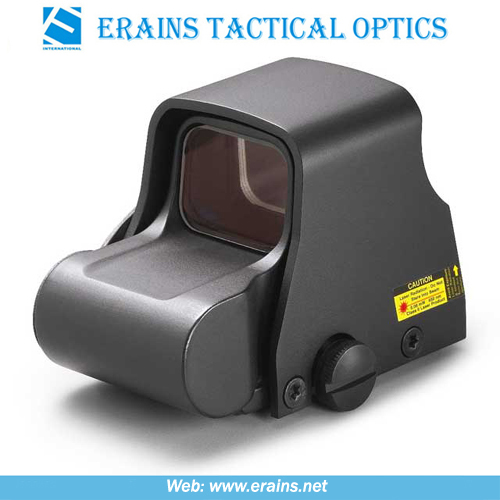

Name: Tactical Holographic Red/Green Dot Sight
Model: XPS red dot & green dot scope, XPS red dot & green dot sight

Description:
-Compact Holographic Red/Green DOT Sight
-20 level brightness for adjustment the red/green DOT
-Big Nut QD Design for fast install / detachment
-Mount on any 20mm weaver standard rail
-Operated by 1 x CR123A battery (Included)
-Anti-glare reflective coating on front facing lens also give good optical clarity
-Parallax Free with Shock Proof, Wather Proof, & Fog Proof
-Easy Hook Up, Install in just seconds
-Include Flip Open Protection Cover
Package includes:
-XPS Red/Green DOT Scope for Airsoft x1
-Cleaning Cloth x 1
-Cover x1
-CR123A Batteries x1
Model: XPS red dot & green dot scope, XPS red dot & green dot sight

Description:
-Compact Holographic Red/Green DOT Sight
-20 level brightness for adjustment the red/green DOT
-Big Nut QD Design for fast install / detachment
-Mount on any 20mm weaver standard rail
-Operated by 1 x CR123A battery (Included)
-Anti-glare reflective coating on front facing lens also give good optical clarity
-Parallax Free with Shock Proof, Wather Proof, & Fog Proof
-Easy Hook Up, Install in just seconds
-Include Flip Open Protection Cover
Package includes:
-XPS Red/Green DOT Scope for Airsoft x1
-Cleaning Cloth x 1
-Cover x1
-CR123A Batteries x1
| Specifications |
|
| Optics | Transmission holography - parallax free |
| 65MOA ring and 1MOA dot | |
| Magnification | 1x unlimited eye relief |
| Length/Width/Height | 3.75 x 2.4 x 2.4 |
| Weight (oz) | 8.8 oz |
| Temperature | -40 to 150F (operating); -40 to 150F (storage) |
| Sealing | Fogproof internal optics & Waterproof Submersible to 33 ft depth |
| Color/Finish | Non reflective black with hard coat finish |
| Adjustment (per click) | 0.5 MOA 1/2 " at 100 yds, 0.25 MOA 14" at 50 yds. |
| AdjustmentRange | +/- 40 MOA travel |
| Mount | 1" Weaver or Picatinny MIL-STD-1913 rail |
| Return to Zero | Repeatable to 2 MOA after re-mounting |
| Heads-Up Display Window |
|
| Optics Surfaces | Anti-glare coating |
| Window Dimensions | 1.20" x 0.85" (30 x 23 mm) |
| Front Window Material | 1/8" solid glass |
| Rear Window Material | Shatter resistant laminate 3/16" thick |
| Field of View 100 yds | 30 ydsat a 4" eye relief |
| Reticle Options | 65MOA ring and 1MOA dot |
| Electrical |
|
| BrightnessAdjustment Range | 110, 000: 1 brightest to lowest |
| Power Source | One 123 lithium battery |
| BatteryLife: | 600 continuous hours at nominal setting 12 |
| Auto Battery Check Indicator: | Flashing reticle upon start-up |
| Auto Shutdown | At 8 hours - programmable to 4 hours |
