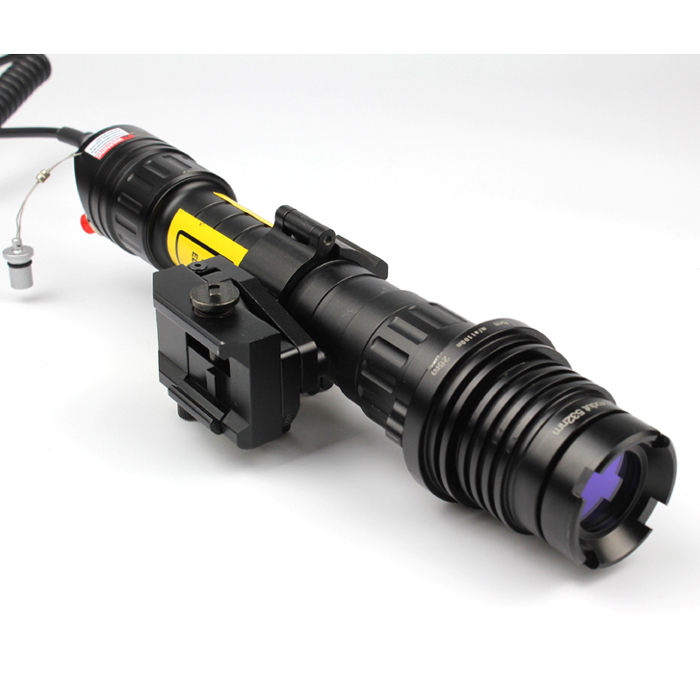

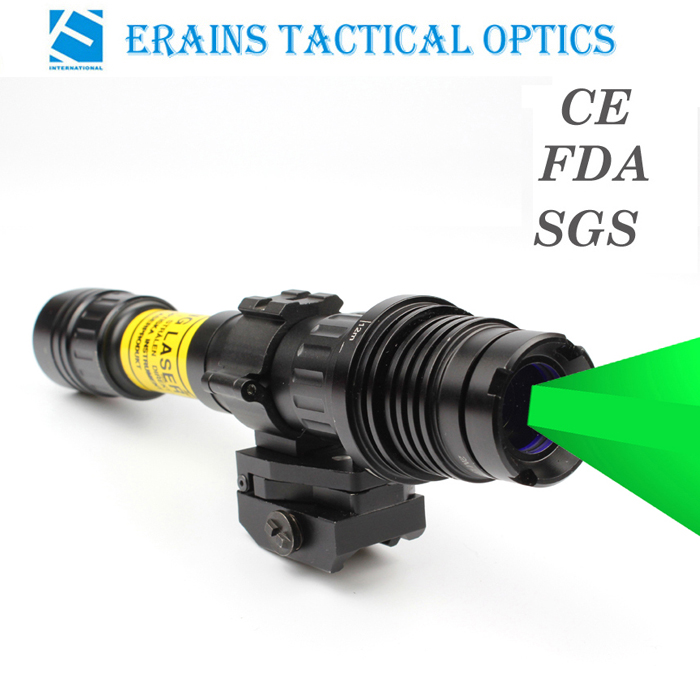

Subzero Rifle Scope Night Vision Solution Hunting Torch Light of Zoomable Long Distance 100MW Green Laser Designator Illuminator /Sight (ES-LS-KS300)

BASIC INFO
Green laser designator feature:

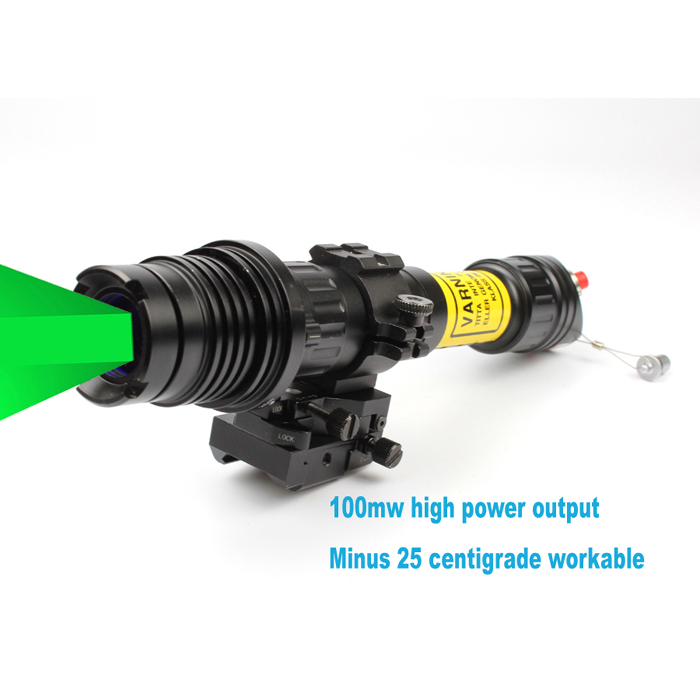

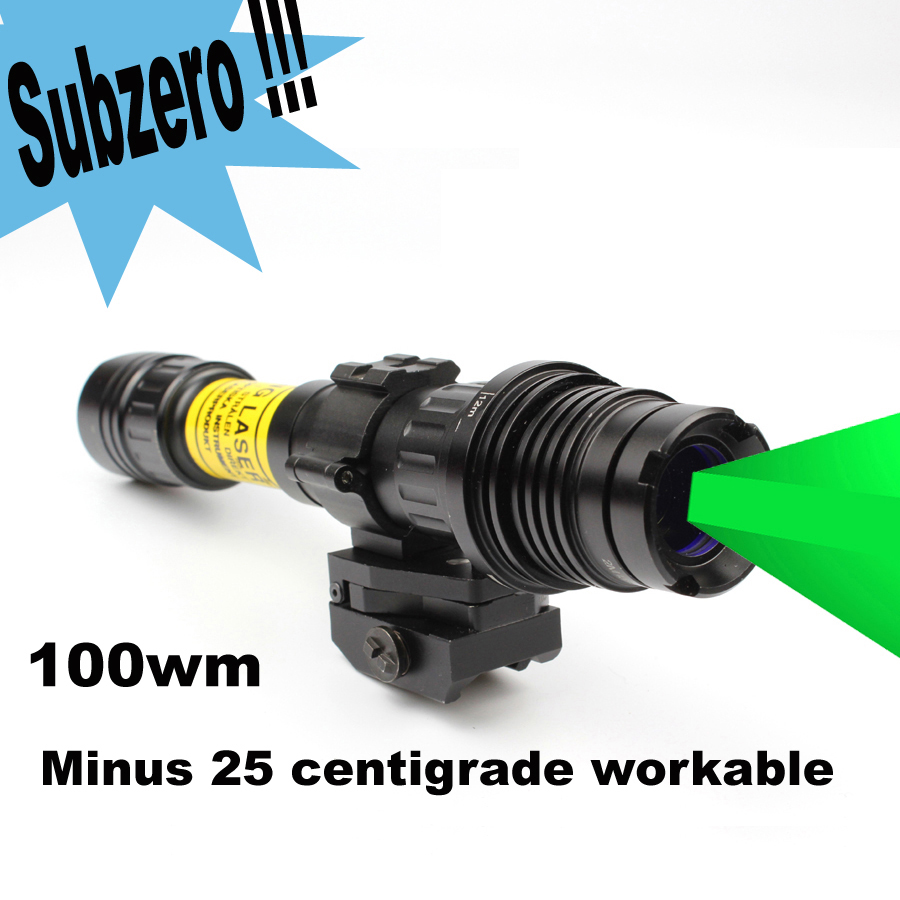

1. Low temp up to - 25 centigrade workable.
2. Laser power adjustment, output power reaching 120mw
3. Inside heating system intergrated.
4. A wide range laser beam diameter adjustable with min dia locking system
5. Both laser mount and weaver rail riflescope ring mount attaching with adpators to fit size with both 25.4mm and 30mm.
6. Rechargeable batteries with a spare battery including charger in both wall and car plug.
7. High grade individual aluminium gift case package.

ES-LS-KS300 Professional Long Distance Green Laser Designator
(1) Green Laser Sight
(2) Wavelength: 530-532nm
(3) Expansion: 10X
(4) Battery: ICR18650 rechargeable Lithium battery with 2400mAh
(5) MTTF: 5000 hours
(6) Laser power: Output power=120-150mw Exit power>80-100mw

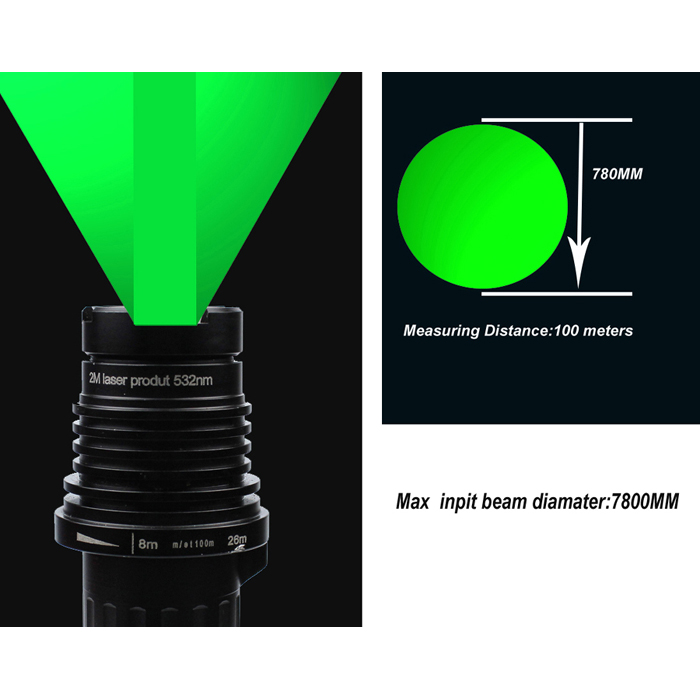

(7) Laser bean DOT diameter: Measured at 100 meters distance Max dia 26mm (+/-10cm) Min 8m (+/-5cm) Measured at 100 meters distance, Error between +/- 5 to 10cm)
(8) Designator Outer size: L225mm X Max dia 46mm, Min dia 25.4mm
(9) Power consumption: Max 15W under -20 centigrade, normally is 3W under 20-25 centigrade
(10) Laser class: CLASS 2M
(11) Operating Voltage: DC3.7V
(12) Operating Temperature:
(High temp) It can work steady under 40 centigrade for 15-20 minutes, but it can work well constently under 35 centigrade.
(Low temp) It will delay in light under -25 centigrade after 2minutes, it can work well under -20 centigrade
(Low temp start) When it was stored under -20 centigrade in closed mode for 10 minutes, it needs to heat for 1-2 mins before it can work steady.
(13) Storage Temperature: -30~80 centigrade
Feature:
Low temp working compatbility
Power adjustment
Variable laser beam diameter adjustable
High-quality green laser module, optical glass lens, driver circuit and housing
High Transmission
Short System Length
Small Spherical Aberration
Hight precision pressure pad plug and end lid hole contacting system
High reliability, high stability, long life, low price
Fully o-ring sealed for dust
Fully multicoated optical lens systems
Rotary optical beam collmator - Allows quick adjustment of beam diameter and intensity
Amplified coherent light-Most efficient light for long distance illumination
Application Area:
Laser Alignment
Aiming and Positioning
Hunting and Spotting
Search and Rescue
Outdoors and Hiking
Packing list:
1x Tactical Green Laser Designator

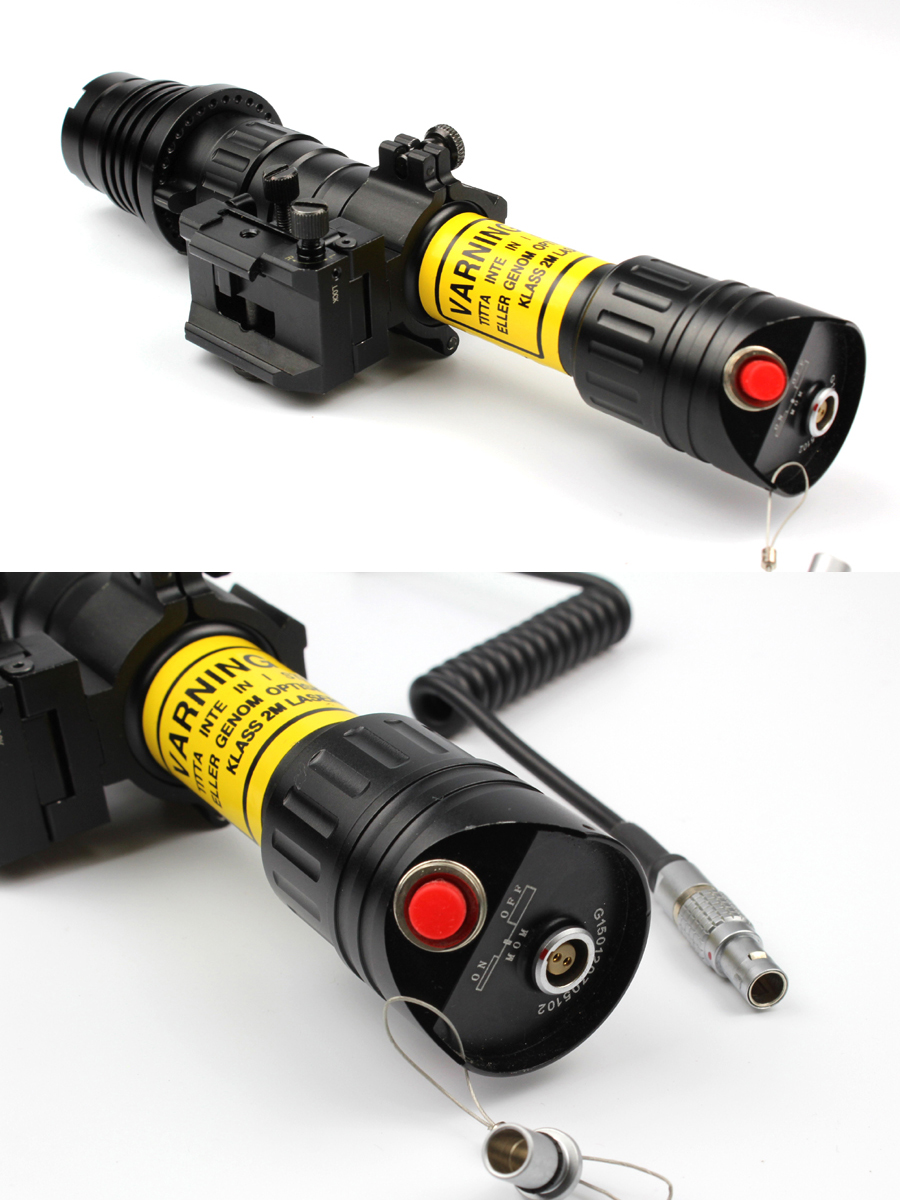

1x Remote Pressure Pad with wire Plug switch
1x Red color on/off push button switch
2x ICR18650 rechargeable Lithium battery with 2400mAh

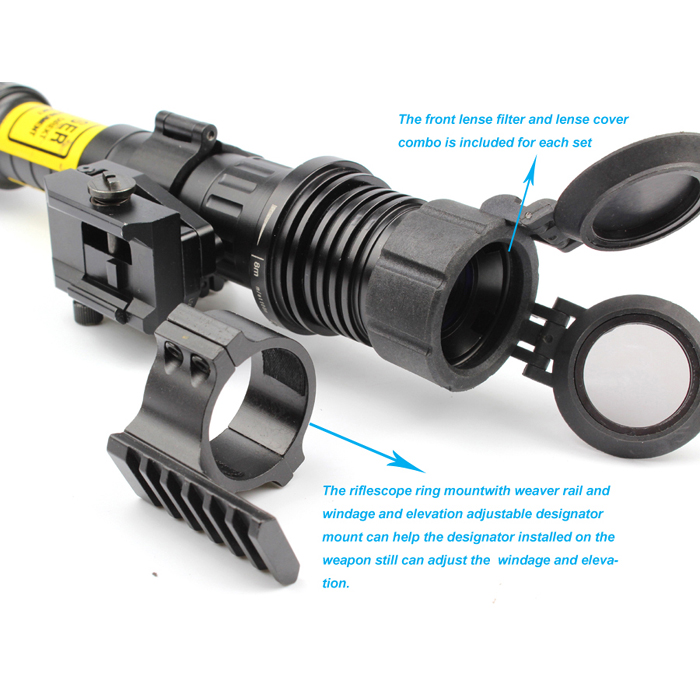

1x Weaver rail riflescope ring Mount (Φ 25.4mm and Φ 30mm or 34mm )
1x Windage and elevation adjustable laser mount (Φ 25.4mm and Φ 30mm)

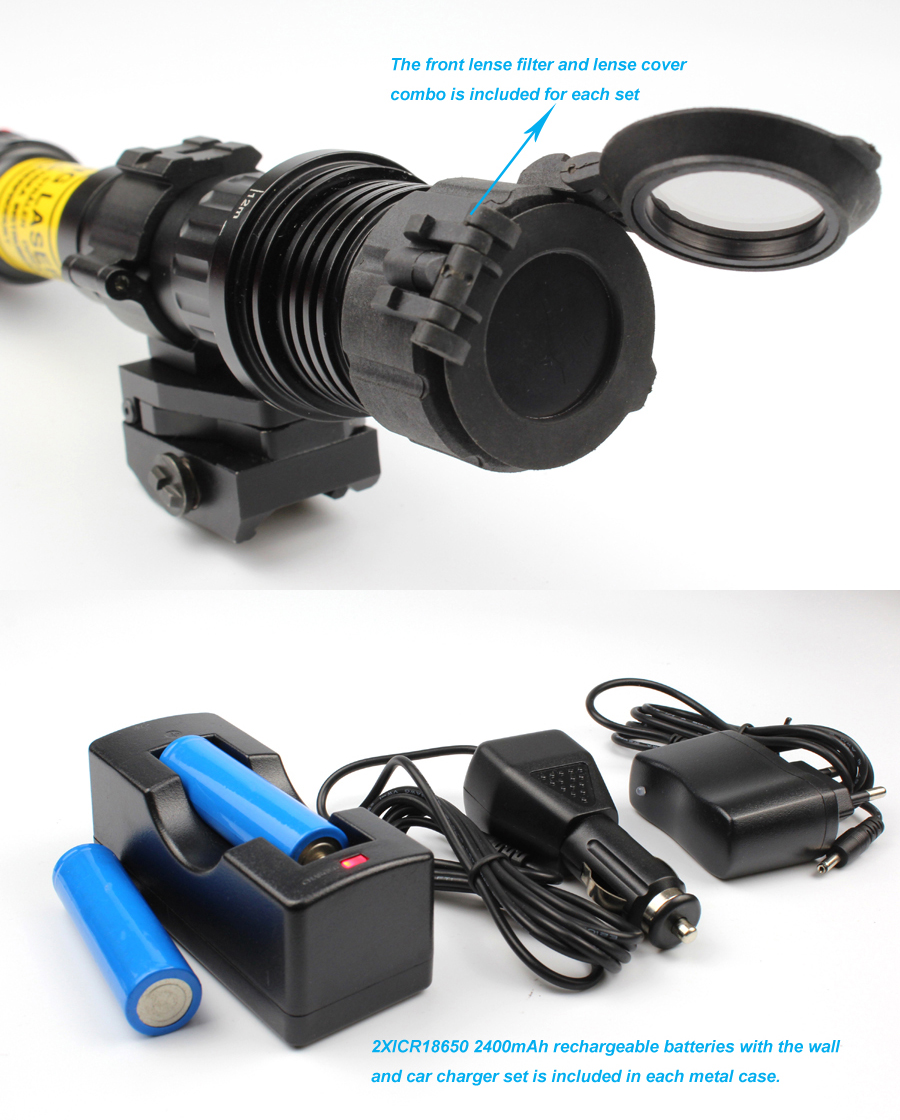

1x Plastic front lense cover and filter combo
3x Allen wrenches

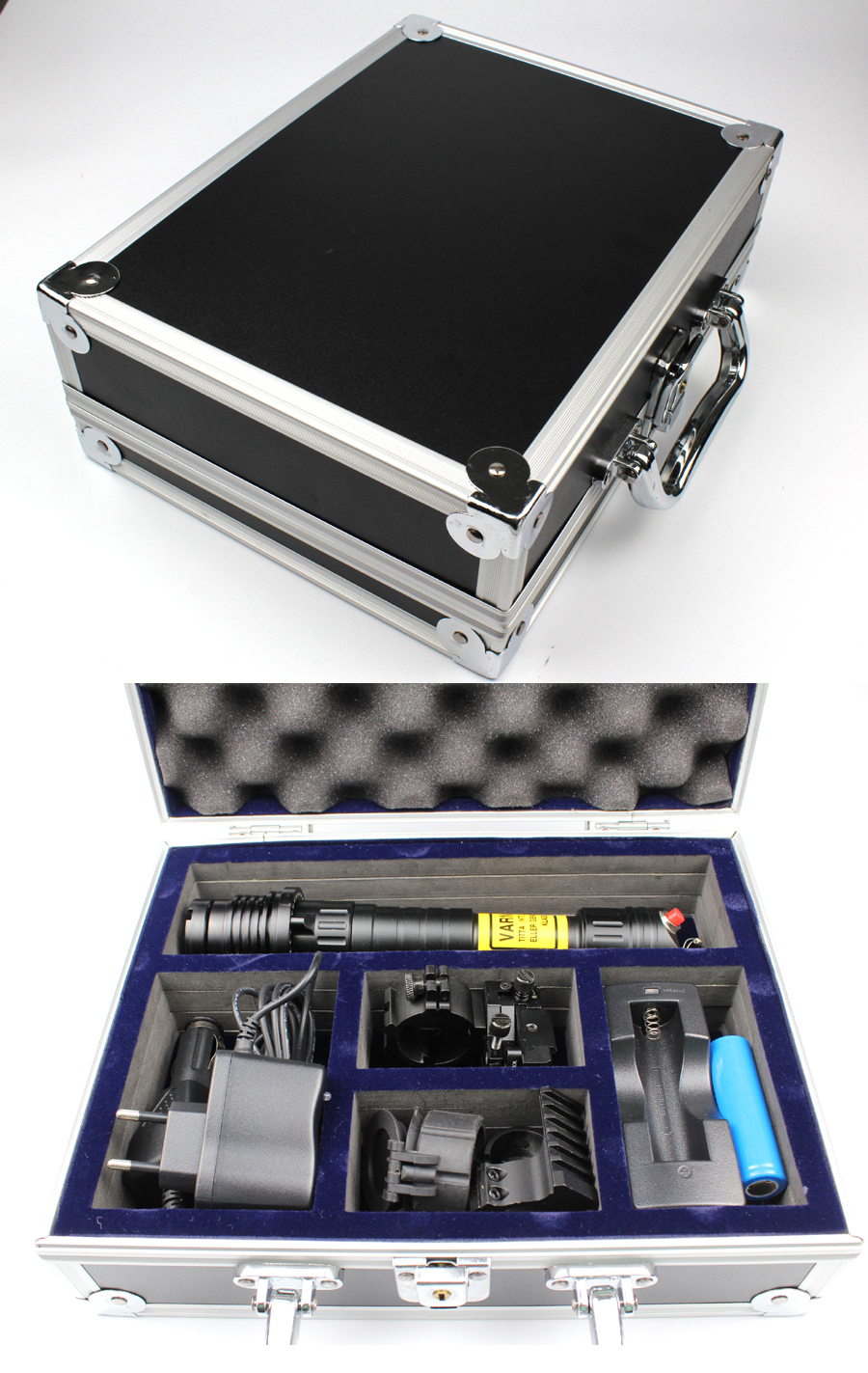

1x Aluminium case with outer color box and individual inner carton
Pack information:
Unit Weight: 2.1 kgs
G. W: 20.50 kgs
N. W: 19.50 kgs
CTN: 8 PCS
Carton Size: 62cmX52cmX38cm
Products color: Black with normal anodize
Warranty: 1 Year Limited warranty.
Name LS-KS300 Professional Green laser designator (ICR18650 battery box) Output > 80-100mw
Test unit 1PC Sample

Test contents Standard requirement

High and low temp test High temp It can work steady under 40  centigrade for 15-20 minutes, but it can work well constently under 35  centigrade. Recommended working tem from -10  centigrade to +35  centigrade, pre heating starts automatically in sub zero temp, below -15 centigrade, it needs to heat up a short period. before it works steady.
If hunting below sub zero conditions, use black lense cover. Start the designator asap when animals are approaching,   then just flip the front cover up when you are ready to shoot.

Low temp It will delay in light under -25  centigrade after 2minutes, it can work well under -20  centigrade
Low temp start When it was stored under -20  centigrade in closed mode for 10 minutes, it needs to heat for 1-2 mins before it can work steady.
Random vibration test Stimulate the shock platform Stimulate the semi-rifle continuous shooting platform

Drop test fall from 3 meters height to sediment ground No changes on brightness and dot position after 3 times falling
Proof test Water proof Rain water proof
Dust proof IP65


Laser wavelength 530-532nm

Laser power Output power=120-150mw  Exit power> 80-100mw

Laser bean dot diameter Measured at 100 meters distance Max dia 26m (+/-10cm) Min 8mm (+/-5cm) Error between +/- 5 to 10cm
Produce working info Power consumption Max 15W under -20  centigrade, normally is 3W under 20-25  centigrade

Batterysort ICR18650 rechargeable Lithium battery with 2400mAh

Voltage 3.7V

Batteryworking time Work constantly for 6-7 hrs under 25  centigrade, but it just can work constantly for 2-3 hrs under -20  centigrade

Main body material 6063-T6 Aluminium

Finish Normalanodize

Outer size L225mm X Max dia 46mm, Min dia 25.4mm

Weight 2.1kgs for full set with aluminium case

Heating means PWM
