Erains International Limited

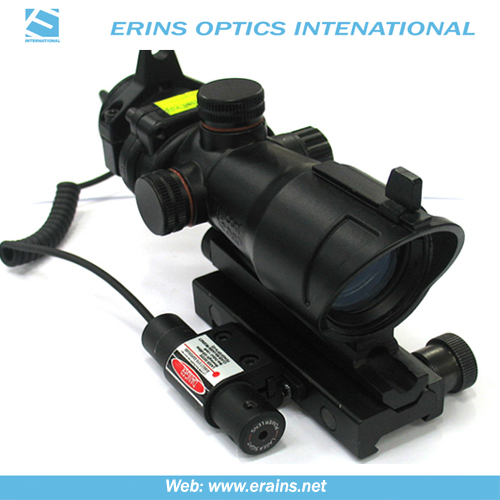

Trumpet shell green and red dot sight with windage and elevation adjust mechanism and mini red laser scope combo

BASIC INFO

Model: ES-AX30120: HD-2+ JG-11


Name: Developed windage and elevation adjustable Green Dot and Red Dot Scope and side attached mini red laser scope combo, Red Dot Sight or Red Dot Scope, Dot sight





OPTICAL DATA
System Parallax Free, Reflex, Collimator System
Magnification: No magnification (1X)
Eye relief Unlimited, No centering required
Reticle, size Red dot, diameter 8 MOA*



ELECTRONIC DATA
Battery Type: 2X3 Volt (LR936) for red and green dot combo + 3X AG13 cell buttons for laser
Battery Life: 50-100 hours average.
Switch, dot brightness 10 positions, of which 5 Extra Bright




MECHANICAL DATA
Material housing: Extruded high strength aluminium
Surface finish: Hard anodized, matte, Graphite Gray
Material lens covers Thermoplastic Elastomer, black non-glare
Adjustment 1 click = 10 mm at 80 meters = 13 mm at 100 meters



DIMENSIONS
Length: 130 mm (5.1")
Width/height: 55 mm (2.2")
Ring width Max: 32 mm (1.2")
Weight: 280 grams (7.1 oz)




ENVIRONMENTAL DATA
Temperature Range: -45oC to +70oC (-50oF to +160oF)
Water resistance Submersible to: 25 m (80ft) water depth
*MOA (Minute Of Angle) 1 MOA = 30 mm at 100 meters

...
