New Long Distance 50mw Green Laser Designator / Sight (ES-G25-M)

BASIC INFO
New Long distance green laser designator feature:
1. Fully o-ring sealed for dust and water
2. Fully multicoated optical lens systems
3. Rotary optical beam collmator-Allows quick adjustment of beam diameter and intensity
4. Amplified coherent light-Most efficient light for long distance illumination
5. Both laser mount and weaver rail riflescope ring mount attaching with adpators to fit size with both 25.4mm and 30mm.
6. A normal 3.0-5.0V rechargeable CR123A battery to supply the power.
7. High grade individual paper board package.




ES-G25-M New Seriesl Long Distance Green Laser Designator

(1) Green Laser Sight
(2) Wavelength: 532nm
(3) Expansion: 10X
(4) Battery: 1X rechargeable CR123A Lithium battery with 700mAh (Wall and Car AC/DC charge is optional kit)
(5) MTTF: 5000 hours
(6) Laser power: 50mw

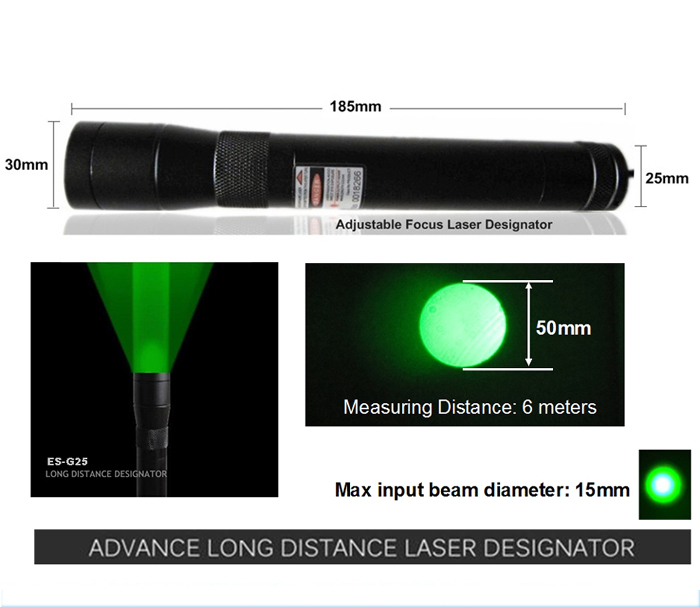

(7) Laser bean DOT diameter: Measured at 6 meters distance Max dia 50mm (+/-10cm) Min 15mm (+/-5mm) Error between +/- 5 to 10mm, the Diameter could be from 15-16cm@30meters distance and 18-20@40 meters distance away.
(8) Designator Outer size: L225mm X Max dia 46mm, Min dia 25.4mm
(9) Min beam divergence: 0.05mrad
(10) Max beam divergence: 1.5degree
(11)Operating Voltage: DC3V-5V
(12) Laser class: CLASS IIIB
(13) Operating Temperature: 10° C~40° C
(14)Storage Temperature: -30° C~80° C

Feature:
Variable laser beam diameter adjustable
High-quality green laser module, optical glass lens, driver circuit and housing
High Transmission
Short System Length
Small Spherical Aberration
Hight precision pressure pad and end lid push button switch
High reliability, high stability, long life, low price
Fully o-ring sealed for dust
Fully multicoated optical lens systems
Rotary optical beam collmator - Allows quick adjustment of beam diameter and intensity
Amplified coherent light-Most efficient light for long distance illumination

Application Area:
Laser Alignment
Aiming and Positioning
Hunting and Spotting
Search and Rescue
Outdoors and Hiking

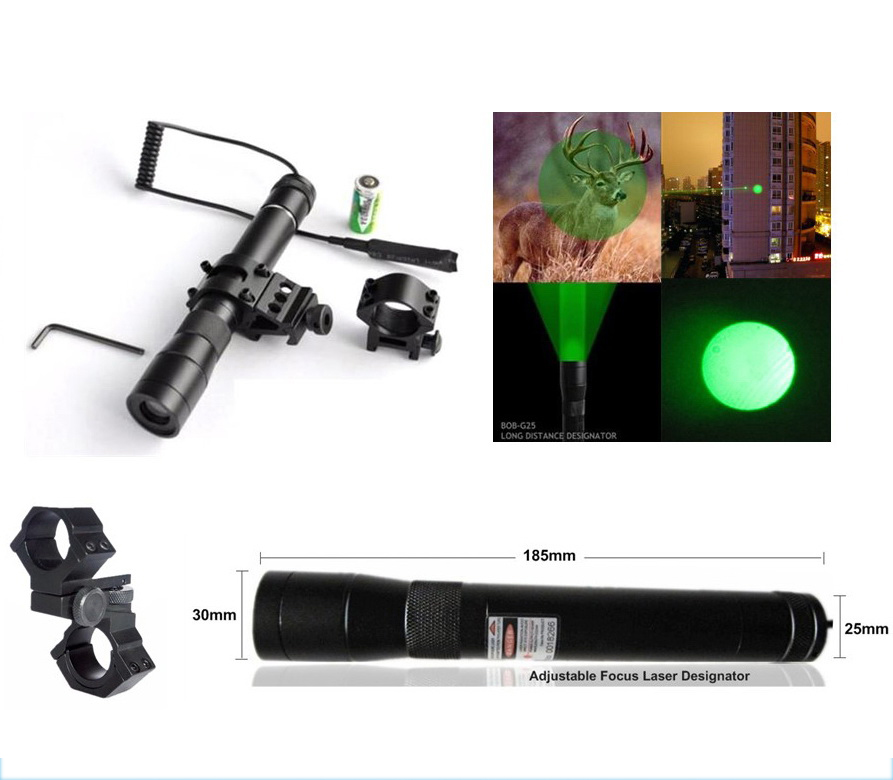

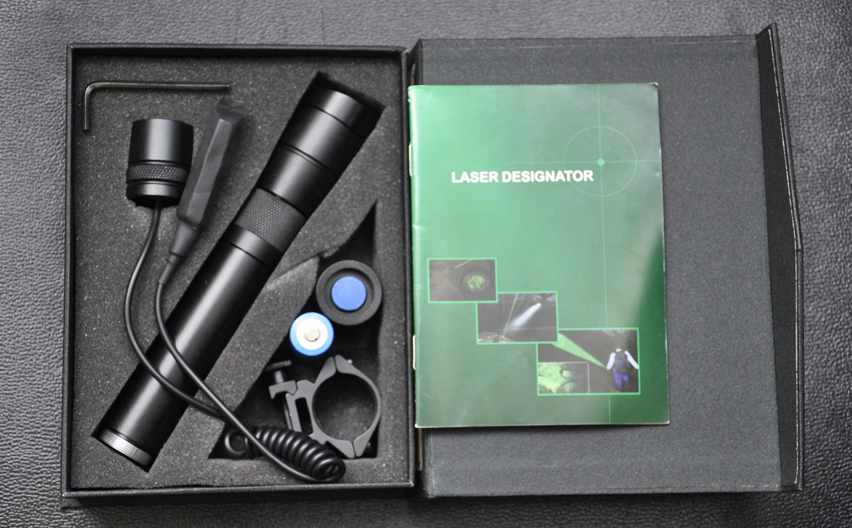

Packing list:
1x Tactical Green Laser Designator
1x Remote Pressure Pad switch
1x Blue color on/off push button switch
1x CR123A rechargeable Lithium battery with 700mAh
1x Weaver rail riflescope ring Mount (Φ 25.4mm )
1x Windage and elevation adjustable laser mount (Φ 25.4mm and Φ 30mm)
1x Allen wrenches
1x Gift paper board box


Pack information:
Unit Weight: 350 g/pc
G. W: 33 kgs
N. W: 31 kgs
CTN: 50 PCS
Gift box size: 18.5*13.5*4.5cm
Carton Size: 64*38*31.5cm

Products color: Black with normal anodize

Warranty: 1 Year Limited warranty.
